Hangzhou Bright Rubber Yas Khoom Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm fr4 fiberglass ntawv hauv Suav teb. Yog hais tias koj yuav mus yuav high quanity fr4 fiberglass ntawv ua nyob rau hauv Suav teb, txais tos kom tau txais cov ntaub ntawv ntau ntxiv los ntawm peb lub hoobkas. Peb kuj txais customized txiav txim.

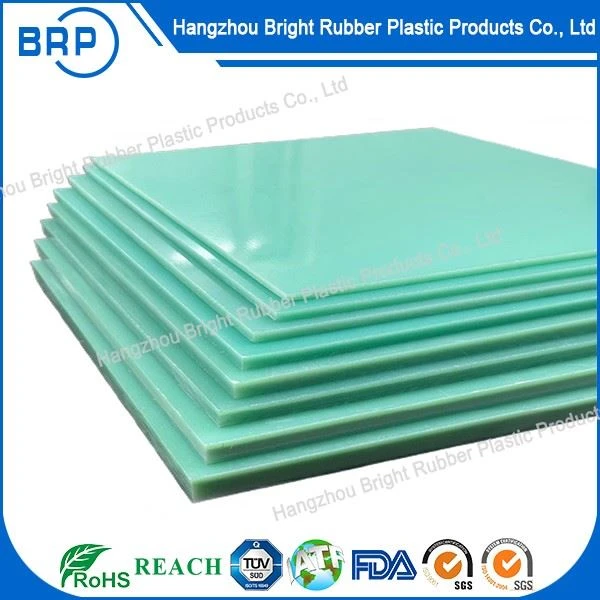

High Quanity FR4 Fiberglass Sheet
| Khoom siv |
FR-4 |
|
xim |
Ntsuab |
|
puab |
Customized |
|
khoom siv tes ua |
Laser cov cav tov, engraving tshuab, dabtsi yog khoov, CNC irregular shapes |
|
daim ntawv pov thawj |
UL, RoHS, REACH |
|
pob |
Lub hnab yas puab, sab nraum lub thawv |
|
kev pabcuam |
Kev pabcuam OEM, kuaj dawb muaj |
|
lub sijhawm xa khoom |
15-20 hnub tom qab tau txais kev txiav txim |
|
tawm tswv yim |
Cov lus nug yuav teb rau hauv 48 teev |
|
tom qab kev pabcuam |
Txhua nqe lus nug thiab teeb meem, thov koj xav tiv tauj peb |
High Quanity FR4 Fiberglass Sheet
| Index npe | Chav tsev | Index Tus nqi |
| Qhov ntom | g/cm3 | 1.8-2.0 |
| Kev nqus dej | % | Tsawg dua los yog sib npaug li 0.5 |
| Flexural Strength Perpendicular rau Lamina | MPa | Ntau dua lossis sib npaug rau 340 |
| Compressive Strength Perpendicular rau Lamina | MPa | Ntau dua lossis sib npaug li 350 |
| Impact Strength Parallel to Lamina (Charpy Beam Method, Notched) | KJ/m2 | Ntau dua lossis sib npaug rau 37 |
| Shear Strength Parallel rau Lamina | MPa | Ntau dua lossis sib npaug li 34 |
| Tensile zog | MPa | Ntau dua lossis sib npaug li 300 |
| Hluav taws xob muaj zog Perpendicular rau Lamina (90℃± 2℃hauv roj): 1mm | KV/mm | Ntau dua lossis sib npaug rau 14.2 |
| 2 hli | Ntau dua lossis sib npaug rau 11.8 | |
| 3mm ib | Ntau dua lossis sib npaug rau 10.2 | |
| Kev tawg Voltage Perpendicular rau Lamina (90℃± 2℃hauv Roj) | KV | Ntau dua lossis sib npaug li 40 |
| Dissipation Factor (50Hz) | Tsawg dua lossis sib npaug li 0.04 | |
| Insulation Resistance (Nco) | Ω | Loj dua los yog sib npaug rau 5.0x1012 |
| Rwb thaiv tsev tsis kam (Tom qab 24 teev dej immersion) | Loj dua los yog sib npaug rau 5.0x1010 | |
| Flammability (UL-94) | V0 |
Product Performance:
High mechanical zog ntawm nruab nrab kub thiab ruaj khov hluav taws xob khoom ntawm qhov kub thiab txias. Haum rau siab -kub insulating cov yam ntxwv ntawm cov khoom siv hauv tes, khoom siv hluav taws xob, thiab hluav taws xob. Nws nthuav tawm cov khoom siv hluav taws xob siab thiab dielectric, nrog rau cov cua sov thiab noo noo tsis kam. Kub tiv taus qib F.
High Quanity FR4 Fiberglass Sheet
Khoom siv:
Insulating Cheebtsam nyob rau hauv lub cev muaj zog thiab cov khoom siv hluav taws xob, nrog rau ntau yam keyboards, hluav taws xob rwb thaiv tsev, FPC reinforcement sheets, carbon film printed circuit boards, computer drilling pads, pwm jigs, thiab lwm yam. (PCB test fixtures) Nws kuj tuaj yeem siv rau hauv qhov chaw ntub dej thiab hauv cov roj transformer, ua rau nws haum rau ntau yam kev siv.
Cim npe nrov: siab quanity fr4 fiberglass ntawv, Tuam Tshoj, manufacturers, lwm tus neeg, Hoobkas, customized, ua nyob rau hauv Suav teb
