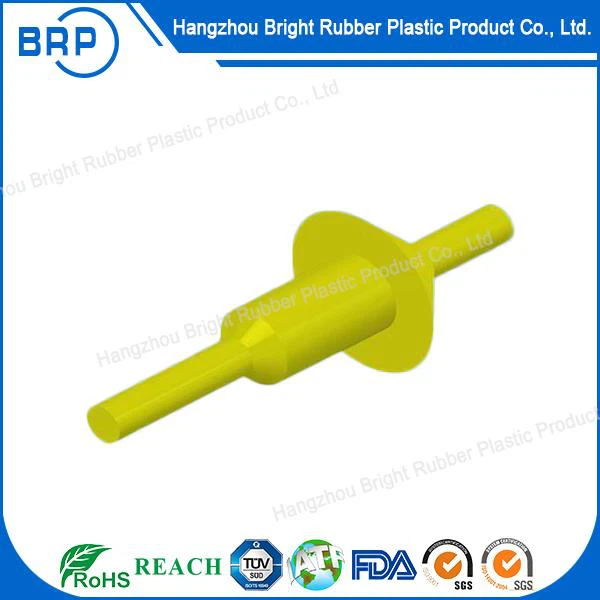

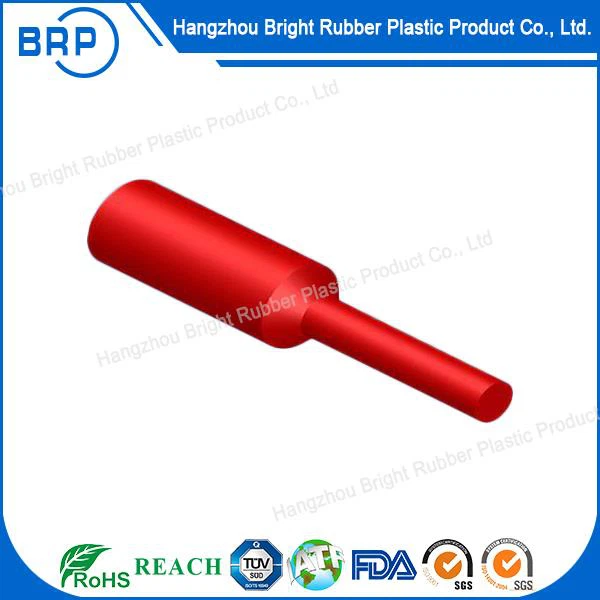

Pom zoo rau cov chaw nkaum qhov thaum lub qhov khaus tuaj yeem raug ncav ntawm ob tog thaum hmoov txheej. Thaum rub los ntawm qhov, qhov loj diam (A) ncav thiab lub taub muaj compresses txog thaum tso tawm muab lub kaw ntom nti, txawm pab txhawm rau txhuam cov xov chamfers rau ntawm daim ntaub ntawv. Qhov loj diam iav (A) ntawm lub ntsaws lub hau yuav tsum yog yam tsawg 4-5% loj dua qhov lub qhov fais fab. Kub txav mus txog 315 C / 600 F thiab ua haujlwm kom rov siv dua.
Khoom siv: Silicone
Xim: Saib daim ntawv
Cov Naj Npawb | Teeb meem loj | Dimensions (Saib Daim Duab Qhia) uaj Hlis ○ hli | Xim | Ib Lub Hnab | Thov Ib Tsocai | Thov Thov Dawb | |||
Fits | A | B | C | D | |||||
SPP-.062-500 | - | .062 | .040 | .500 | .500 | Xiav | 1 Hnab: 500pcs. | □ | □ |
SPP-.067 | - | .067 | .045 | .625 | .625 | Liab | 1 Hnab: 1000pcs. | □ | □ |
SPP-.073 | - | .073 | .046 | .612 | .590 | Ntsuab | 1 Hnab: 1,000pcs. | □ | □ |
SPP-.080 | - | .080 | .045 | 1.000 | 1.000 | Ntshiab | 1 Hnab: 1,000pcs. | □ | □ |
SPP-.091 | - | .091 | .052 | 1.000 | 1.000 | Dawb | 1 Hnab: 500pcs. | □ | □ |
SPP-.093 | - | .093 | .050 | .625 | .625 | Dawb | 1 Hnab: 1,000pcs. | □ | □ |
SPP-.109 | 4-40 | .109 | .062 | .625 | .625 | Xiav | 1 Hnab: 1,000pcs. | □ | □ |
SPP-.125 | 6-32 | .125 | .062 | .625 | .625 | Liab | 1 Hnab: 1,000pcs. | □ | □ |
SPP-.130LSP | - | .130 | .093 | 1.000 | 1.000 | Ntsuab | 1 Hnab: 1,000pcs. | □ | □ |
SPP-.140 | - | .140 | .085 | .625 | .625 | Paj yeeb | 1 Hnab: 1,000pcs. | □ | □ |
SPP-.156 | 8-32 | .156 | .062 | .625 | .625 | Dawb | 1 Hnab: 1,000pcs. | □ | □ |
SPP-.156-1250 | - | .156 | .093 | 1.250 | 1.250 | Ntshav | 1 Hnab: 500pcs. | □ | □ |
SPP-.175 | M5 3/16 10-24 | .175 | .123 | 1.250 | 1.250 | Xiav | 1 Hnab: 500pcs. | □ | □ |
SPP-.187 | - | .187 | .110 | .625 | .625 | Daj | 1 Hnab: 500pcs. | □ | □ |
SPP-.195 | - | .195 | .110 | 1.000 | 1.000 | Ntsuab | 1 Hnab: 500pcs. | □ | □ |
SPP-.195S | - | .195 | .110 | .625 | .625 | Ntshiab | 1 Hnab: 500pcs. | □ | □ |
SPP-.218 | M6 1 / 4-20 | .218 | .130 | 1.000 | 1.000 | Liab | 1 Hnab: 500pcs. | □ | □ |
SPP-.225 | - | .225 | .125 | 1.000 | 1.000 | Ntsuab | 1 Hnab: 500pcs. | □ | □ |
SPP-.236 | - | .36 | .61 | 1.250 | 1.250 | Txiv kab ntxwv | 1 Hnab: 500pcs. | □ | □ |
SPP-.257 | - | .257 | .130 | 1.000 | 1.000 | Paj yeeb | 1 Hnab: 500pcs. | □ | □ |
SPP-.275 | - | .52 | .125 | .937 | .920 | Daj | 1 Hnab: 500pcs. | □ | □ |
SPP-.281 | M8 5 / 16-18 | .281 | .138 | 1.000 | 1.000 | Dawb | 1 Hnab: 500pcs. | □ | □ |
SPP-.281-1250 | - | .281 | .138 | 1.250 | 1.250 | Txiv kab ntxwv | 1 Hnab: 500pcs. | □ | □ |
SPP-.312 | - | .312 | .147 | 1.000 | 1.000 | Xiav | 1 Hnab: 250pcs. | □ | □ |
SPP-.335 | 3 / 8-16 | .335 | .153 | 1.000 | 1.000 | Liab | 1 Hnab: 250pcs. | □ | □ |
SPP-.350 | 3/8-16 M10 | .350 | .193 | .900 | 1.000 | Ntsuab | 1 Hnab: 250pcs. | □ | □ |
SPP-.388 | 7 / 16-14 | .388 | .157 | 1.000 | 1.000 | Paj yeeb | 1 Hnab: 250pcs. | □ | □ |
SPP-.408 | - | .408 | .191 | 1.009 | 1.000 | Dawb | 1 Hnab: 250pcs. | □ | □ |
SPP-.445 | 1 / 2-13 M12 | .454 | .255 | 1.000 | 1.000 | Xiav | 1 Hnab: 250pcs. | □ | □ |
SPP-.472 | - | .472 | .243 | 1.000 | 1.000 | Liab | 1 Hnab: 100pcs. | □ | □ |
SPP-.510 | M14 | .1010 | .256 | 1.000 | .956 | Ntsuab | 1 Hnab: 100pcs. | □ | □ |
SPP-.530 | - | .530 | .50 | 1.000 | 1.000 | Paj yeeb | 1 Hnab: 100pcs. | □ | □ |
SPP-.551 | - | .551 | .50 | 1.181 | 1.181 | Dawb | 1 Hnab: 100pcs. | □ | □ |
SPP-.570 | M16 | .570 | .312 | 1.000 | 1.000 | Xiav | 1 Hnab: 100pcs. | □ | □ |
SPP-.590 | - | .590 | .50 | 1.000 | 1.000 | Liab | 1 Hnab: 100pcs. | □ | □ |
SPP-.612 | - | .612 | .50 | 1.000 | 1.000 | Daj | 1 Hnab: 100pcs. | □ | □ |
SPP-.620 | - | .620 | .329 | 1,500 | 1,500 | Ntshiab | 1 Hnab: 100pcs. | □ | □ |
SPP-.640 | - | .640 | .375 | 1.000 | 1.000 | Ntshiab | 1 Hnab: 100pcs. | □ | □ |
SPP-.670 | - | .670 | .470 | 1,500 | 1,500 | Ntsuab | 1 Hnab: 100pcs. | □ | □ |
SPP-.700 | M20 | .700 | .375 | 1.250 | 1.250 | Ntshiab | 1 Hnab: 100pcs. | □ | □ |
SPP-.729 | - | .729 | .315 | 1.000 | 1.000 | Dawb | 1 Hnab: 100pcs. | □ | □ |
SPP-.750 | - | .750 | .375 | 1.000 | 1.000 | Ntshiab | 1 Hnab: 100pcs. | □ | □ |
Cim npe nrov: high temperautre silicone masking plugs, suav teb, manufacturers, lwm tus neeg, Hoobkas, customized, ua nyob rau hauv Suav teb
